Rugged Ridge Spartacus HD Tire Carrier Kit 07-18 Jeep Wrangler

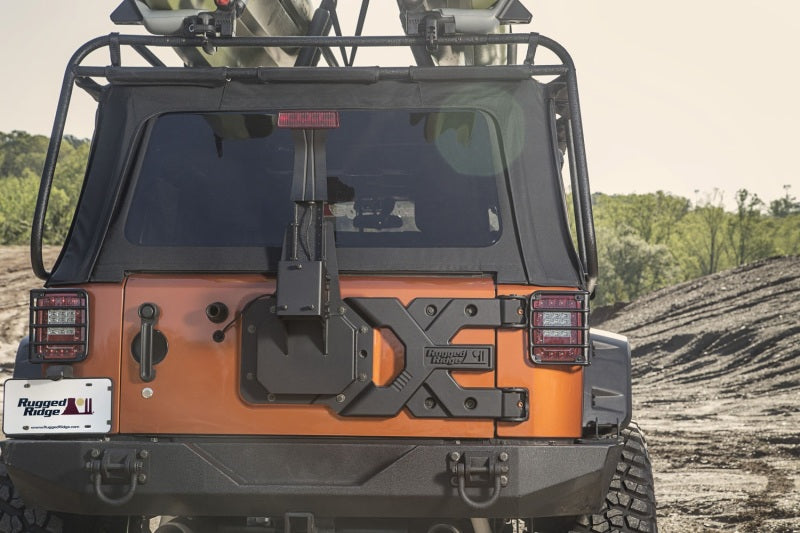

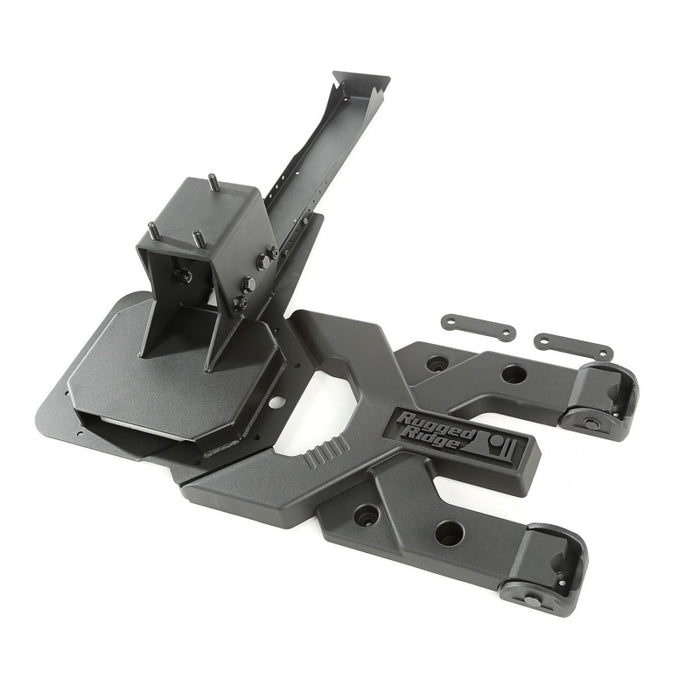

The Spartacus HD Tire Carrier System provides the ultimate in strength and stability for mounting your oversized wheel and tire. Functionally designed to manage the amplified force and vibrations produced during extreme off-road conditions. The precision die-cast aluminum Hinge Casting provides maximum strength without the excess weight of steel. The one-piece design maintains one-handed access to cargo area and rigidly links the Wheel Mount to the reinforced section of the rear quarter panel. This, in combination with forged steel hinge brackets and hardened steel pins, results in far superior load capacity than the factory tailgate hinges, thereby effectively reducing wear and increasing longevity. The Wheel Mount lifts the mounting position and incorporates depth and tilt adjustability for large diameter and wide tire options. Tested to MIL-STD-810 to simulate extended duration of vigorous off-road driving conditions. Rated for up to and including 37" wheel tire combinations. Includes adjustable third brake light bracket. Compatible with OE and most aftermarket rear bumpers. No drilling required. Patent Pending. Patent No. D758,829
Installation Instructions
Warranty


This Part Fits:

Year	Make	Model	Submodel
2011	Jeep	Wrangler	70th Anniversary
2016	Jeep	Wrangler	75th Anniversary
2007-2018	Jeep	Wrangler	Rubicon
2007-2017	Jeep	Wrangler	Sahara
2010-2018	Jeep	Wrangler	Sport
2016,2018	Jeep	Wrangler	Sport S
2011	Jeep	Wrangler	Unlimited 70th Anniversary
2016	Jeep	Wrangler	Unlimited 75th Anniversary
2007-2018	Jeep	Wrangler	Unlimited Rubicon
2007-2018	Jeep	Wrangler	Unlimited Sahara
2010-2018	Jeep	Wrangler	Unlimited Sport
2016,2018	Jeep	Wrangler	Unlimited Sport S
2007-2010	Jeep	Wrangler	Unlimited X
2007-2010	Jeep	Wrangler	X
2018	Jeep	Wrangler JK	Rubicon
2018	Jeep	Wrangler JK	Sahara
2018	Jeep	Wrangler JK	Sport
2018	Jeep	Wrangler JK	Sport S
2018	Jeep	Wrangler JK	Unlimited Rubicon
2018	Jeep	Wrangler JK	Unlimited Sahara
2018	Jeep	Wrangler JK	Unlimited Sport
2018	Jeep	Wrangler JK	Unlimited Sport S
